Supporting the Events Application#

This page describes the internal workings of this application and is intended to help you if you need to support the code.

Relationships#

Congress elements are defined as follows:

  • CongressMaster - represents the series of congresses, basically the congress without the year and the details. These are linked to an organisation which is how security is controlled (at the organisation level).

  • Congress - a congress is a specific concrete instance underneath CongressMaster. Congresses have a lot of data associated with them. Only congresses with a status of “Published” can be seen by normal users.

  • Event - congresses must have events for people to play in.

  • Session - Events must have at least one session.

Entries are linked to the congress structure as follows:

  • EventEntry - this connects to Event and represents a team, individual or pair who are playing in an Event within a Congress.

  • EventEntryPlayer - players who form part of an EventEntry.

  • BasketItem - a collection of one or more EventEntries created by a player who has not yet checked out. BasketItems are deleted once the checkout process has been completed.

Flow#

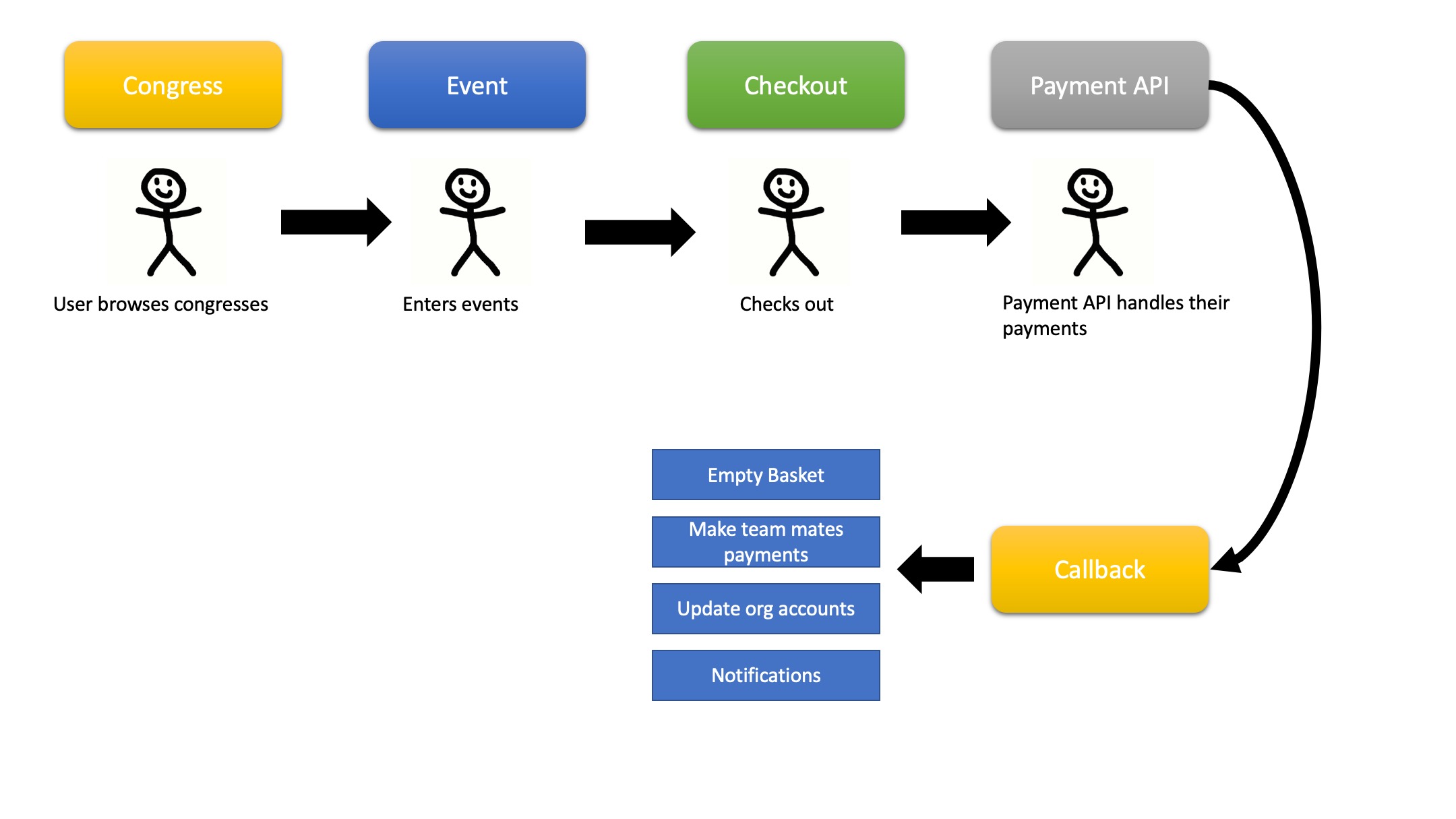

Events Diagram

Users view congresses and can choose to enter events. They may checkout after entering one event or build up a collection of events in their basket. There are three ways that a user can pay for an event. They can use their own system dollars to pay for themselves or team mates. If they have permission then they can use a team mates system dollars to pay for that person only. Finally, if the congress supports it then they pay using off-system methods such as bank transfers or cheques. These are handled by the convener.

When a user checks out they are given a summary of what they are committing to and they are taken to the payment_api which handles the detail of collecting the funds. The EventEntryPlayer records are flagged for payment and if the payment succeeds then the entries are marked as paid. At this point any EventEntryPlayer records associated with this entry which are marked for payment with a team mate’s system dollars are also processed and all team mates are notified. Individual payment records per user are entered into the account of the organisation associated with the congress.

If a player either does not make the payment or the payment fails then the items remain in their basket and no other payments are processed.
